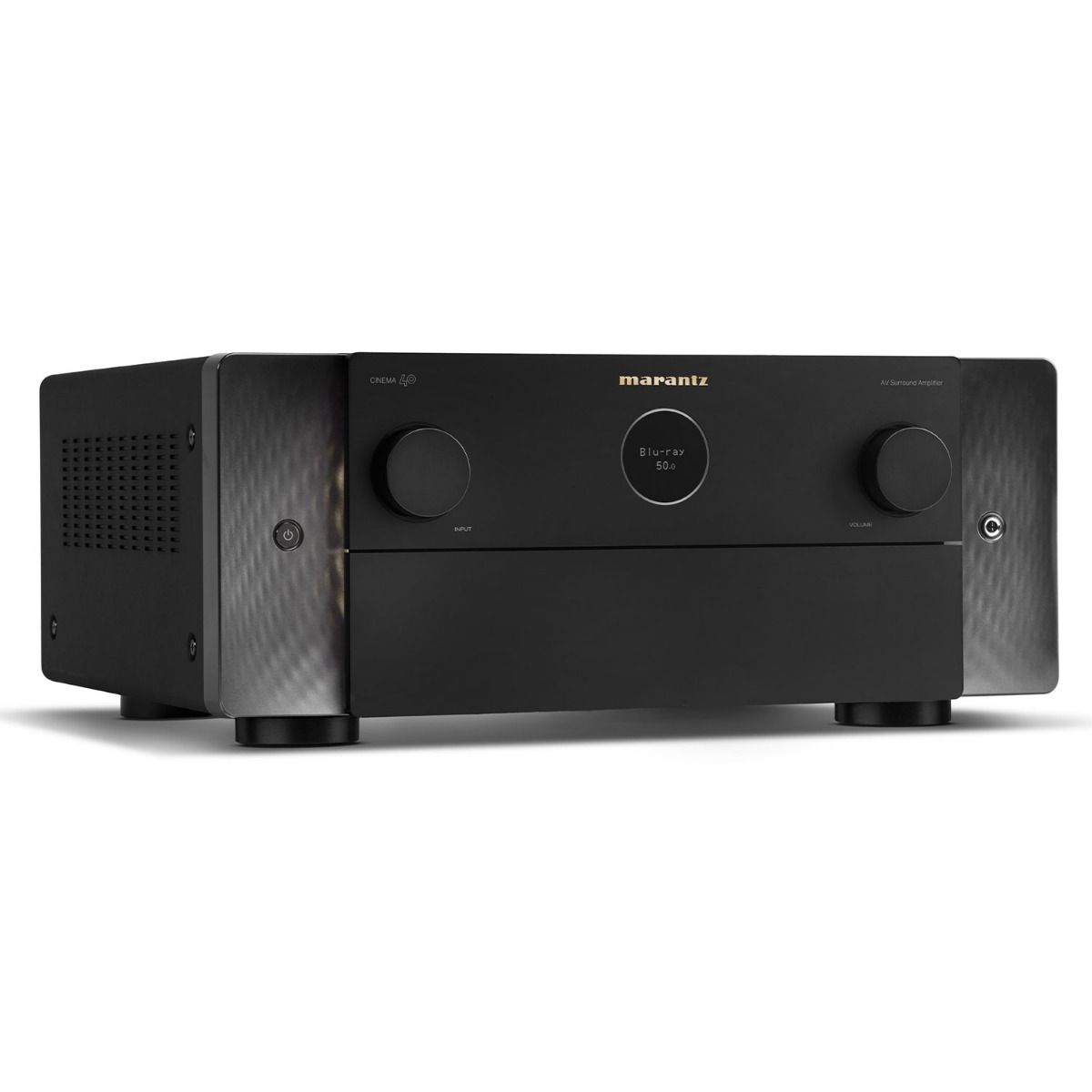

Marantz CINEMA 40 Premium 9.2 Channel AV Receiver - Black

Marantz CINEMA 40 Premium 9.2 Channel AV Receiver - Black

The Marantz CINEMA 40 features high current discrete amplification on 9 channels, delivering 125W of power per channel. The AV amplifier is capable of driving a wide variety of speakers with a balanced, high-quality sound. With Dolby Atmos and DTS:X surround sound, the CINEMA 40 brings you an immersive home cinema experience. With Dolby Atmos Height Virtualization technology, you can get the sensation of overhead speakers without needing upfiring or height speakers, for the ultimate 3-D audio experience. Utilising IMAX Enhanced technology, watch clearer and brighter pictures, with immersive audio and premium content.

Built for the future, the CINEMA 40 features 8K video HDMI connectivity, allowing you to upgrade to 8K sources or TV whenever you wish. With 7 HDMI, the Marantz CINEMA 40 provides enough connections for all your devices, including Blu-ray player, set top box and game consoles. Each HDMI input supports HDCP 2.3, 4K Ultra HD video and HDR10. Featuring HDMI eARC, the CINEMA 40 can support 3D audio from your TV, for more immersive audio. Two HDMI outputs are provided for the main zone, with another for zone 2. The Marantz CINEMA 40 is equipped with Auto Low Latency Mode, allowing gamers to feel the full experience when paired with an ALLM TV.

When it comes to music, the CINEMA 40 AV amplifier excels at music streaming, with wireless connectivity via Wi-Fi and Bluetooth. Stream your favourite songs easily through any music service such as Spotify, Amazon Music or TIDAL, straight to the AV amplifier. Featuring built-in HEOS multi-room technology, the CINEMA 40 can connect with other HEOS enabled speakers through the HEOS app to create whole home audio or play different songs in different rooms. The Marantz CINEMA 40 AV amplifier becomes the centre of your home entertainment system. With a built-in phono stage, connect your turntable for analogue sound.

The CINEMA 40 supports major voice control assistants such as Alexa and Google Assistant. Get hands free control and change the volume, skip tracks or switch inputs, all by just asking. When streaming with Apple AirPlay 2, control the CINEMA 40 with Apple Siri voice assistant for easy control.

With Audyssey MultEQ room correction technology, you can ensure you get the best sound for your room from the system. With the supplied measurement microphone, Audyssey analyses the sound and applies unique filters to each channel for the optimum audio experience from your listening position.

Marantz CINEMA 40 9.2ch AV Amplifier features

•     9.2 channel home cinema amplifier
•     8K video support for HDMI inputs, ready for the future
•     125W per channel with discrete high current amplification
•     Dolby Atmos, DTS:X and IMAX Enhanced surround sound
•     Dolby Atmos Height Virtualization technology for height effects without  physical speakers
•     7 HDMI inputs for Blu-ray, DVD, and game consoles with HDCP 2.3, 4K Ultra HD and HDR10
•     Wireless music streaming with Wi-Fi and Bluetooth
•     HEOS multi-room technology for whole house audio

Power Amplifier
Number of Powered Channels     9
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)     125 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)     165 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)     235 W
70% Guarantee     Yes
Discrete Power Amplifier     Yes
Amplifier Topology     Class A/B
Current Feedback Topology     Yes
Bi-Amp Drive     assignable

Multichannel Surround
DTS     DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
Dolby     Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualisation, Dolby Atmos Music, Dolby Surround
Other     IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Audyssey DSX, Multichannel Stereo2
Max Number of Processing (Preamp) Channels     11.4

Inputs/Outputs
Composite In / Out     2 / 0
Component In / Out     1 / 0
HDMI In / Out     7 / 3
Multi-Room Video Out via HDMI     Yes
Analogue In / Fixed Level Out     6 in / 0 out
Phono (MM) In     Yes
Digital In: Optical / Coaxial     2 / 2
Multi-Room Out: analogue / digital     2 / 0
Multichannel Preamp Out     11.4
Subwoofer Out     4 (independent)
7.1 multichannel input     Yes
Number of Speaker Terminals     11
Speaker A / B     assignable
Multi-Room Speaker Terminal     assignable
Front Inputs     USB-A
USB Audio     Yes
FM Tuner with RDS     No
DAB+ Tuner     No

HDMI
Total HDMI Inputs / No. Support 8K     7 / 7
HDCP2.3 support     Yes
HDMI Outputs: Main / Zone     2 / 1
Analogue to HDMI Video Conversion     Yes
HDMI Upscaling     1080P/4K to 8K
Max resolution @ framerate     8K @ 60Hz, 4K @ 120Hz
Audio Return Channel     eARC
Video Dynamic Range     HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming     Yes
Variable Refresh Rate / Quick Frame Transport     Yes / Yes
HDMI Pass-Through in Standby Mode     Yes
CEC     Yes
DSD Audio over HDMI     Yes
Auto LipSync     Yes

Performance Technologies
Copper Plated Chassis     No
Toroidal Power Supply Transformer     No
Hyper Dynamic Amplifier Modules (HDAM) (List version)     Yes
Pure Direct Mode     Yes
Gold Plated RCA Terminals     Yes
Clock Jitter Reducer     Yes

Acoustic/Room Correction
Audyssey     MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume     Yes / Yes
Audyssey LFC     Yes / Yes
Dirac Live Support     Yes
Variable Cross Over     Yes
Optimised Bass Redirection     Yes
Bass Sync     Yes

Music File Support
Lossy Formats     MP3 / WMA / AAC
Lossless formats     FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
DSD Audio     2.8MHz / 5.6MHz
Gapless Playback     FLAC, WAV, ALAC, DSD
Compressed Audio Enhancer: MDAX2     Yes
Network Audio Sharing     Yes

Streaming Services
HEOS Multi-room and Streaming     Yes
AirPlay Audio Streaming     Airplay 2
Internet Radio     TuneIn
Spotify     Spotify Connect
Pandora     Yes
SiriusXM     Yes
Other Streaming Services     Amazon Music HD / Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix
Roon tested     Yes

Network Connectivity
Ethernet Ports     Yes
Wi-Fi (include version / band)     Yes
Bluetooth (Include version)     Yes
Bluetooth Re-transmit for Bluetooth headphones     Yes

Smart Home Intgeration and Control
Voice Assistant Compatibility     Alexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android)     Marantz AVR App, HEOS
HEOS Multi-Room Integrated     Yes
HEOS Link Compatibility: IR/ IP     Yes / Yes
Multi-Room zones     3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue     2 Ch / 2 Ch / Yes / Yes
Zone Audio Output: Speaker / Preout     Yes / Yes
Zone HDMI Output from HDMI Source     Yes
Control Connectivity     IP Control / RS232 Control / Web Control / App Control
IR Flasher In     Yes
Marantz Remote Bus     Yes
DC Trigger Output     3
HDMI Diagnostics     Yes

Others
Front Display     2 line FLD + port hole OLED
GUI Languages     9
Setup Assistant     Yes
Smart Select on Remote     Yes
Firmware Update by Network / USB     Yes / Yes
ECO Mode     Yes
Auto Power off     Yes
Sleep Timer     Yes

General
Available Colours     Black/Silver-Gold
Metal Front Panel     Yes
System Remote Control     RC-048SR
Power Consumption in W     710
Power Consumption No-Sound (ECO on/off) in W     65 W / 110 W
Standby Consumption in W     0.2
CEC Standby Consumption in W     0.5
Network Standby Consumption in W     Less than 2.0
Maximum Dimensions (W x D x H) mm     Antenna Horizontal: 440 x 414 x 185
Antenna Vertical : 440 x 414 x 254
w/o Antenna: 440 x 401 x 185
Weight in kg     15.1
What's in the box     Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord
